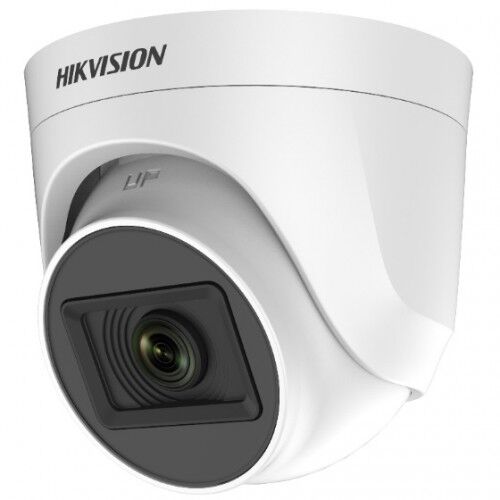

Hikvision DS-2CE76H0T-ITPFS 5 MP Audio Indoor Fixed Turret Camera

Key Features

  • Model: DS-2CE76H0T-ITPFS
  • 5 MP, 2560 × 1944 Resolution
  • 2.8 mm Fixed Focal lens
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • EXIR 2.0 Smart IR, up to 25 m IR distance

Call for Price

Specification

General
Pan/Tilt/Rotation Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Power Supply 12 VDC ± 25%.
Camera
Image Sensor 5 MP CMOS image sensor
Electronic Shutter Speed PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Minimum Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR Distance 25 m IR distance
Lens
Lens Type Lens2.4 mm, 2.8 mm fixed lens
Mount Type M12
Angle of View Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Close Focus Distance 25 m IR distance
Video
Resolution 2560 (H) × 1944 (V)
Frame Rate Frame RateTVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSC
Video Output 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Day/Night ICR
Warranty
Warranty 01 year warranty

Description

Hikvision DS-2CE76H0T-ITPFS 5 MP Audio Indoor Fixed Turret Camera

Hikvision DS-2CE76H0T-ITPFS is a 5 MegaPixels Audio supported Indoor Fixed Turret Camera, The specification of this CCTV Camera includes a 5 MP CMOS  Image Sensor with a PAL/NTSC Signal System. The supported resolution is 2560 X 1944 pixels. The Frame Rate readings are TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps. The Minimum illumination is 0.01 Lux@(F1.2, AGC ON) and 0 Lux with IR on. The Shutter Time readings are PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s. It has a 2.8 mm fixed Lens. The Field of View readings for the 2.8 mm lens are horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°. It also comes with M12 Lens Mount, ICR Day & Night sensor, and Digital WDR (Wide Dynamic Range). as an added feature it has Audio recording support with the built-in microphone. The angle adjustment readings are Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°. The operating features of this camera include Image Mode STD/HIGH-SAT, AGC, Day/Night Mode Auto/Color/BW (Black and White), White Balance Auto/Manual, Auto Exposure Mode DWDR/BLC/HLC/Global, 2D DNR Noise Reduction. the basic settings are Language, Brightness, Sharpness, Mirror, Smart IR Interface. The range for IR is around 25 M. The Video Output is Switchable between TVI, AHD, CVI, and CVBS. The operating Conditions are -40 °C to 60 °C (-40 °F to 140 °F), humidity is 90% or less in non-condensing environments. The Power Supply is around 12 VDC ± 25%. Hikvision DS-2CE76H0T-ITPFS 5 MP Audio Indoor Fixed Turret Camera offers a 1-year warranty.
